Products > Power Control Equipment

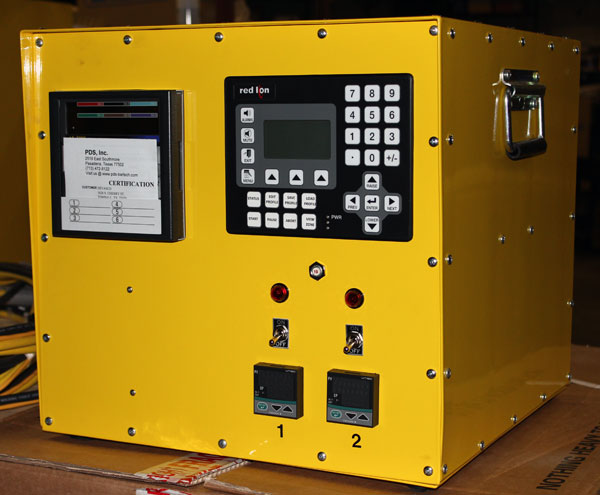

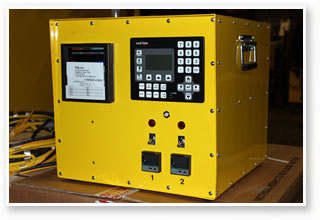

PCE-230NT
TWIN-ZONE FULLY AUTOMATIC CONTROL SYSTEM W/ RECORDER:
(1) HMI-USER FRIENDLY PROGRAMMER, INSTALLED WITH ASME
HEAT TREATING & PWHT CYCLES
(2) COMMUNICATING PROGRAMMABLE CONTROLLERS
(1) 100MM SIMULTANEOUS DISPLAY 6 PT. RECORDER,
CALIBRATED & CERTIFIED
(2) HEAVY DUTY 200AMP CONTACTORS
(1) 6 PT. THERMOCOUPLE JACK PANEL, TYPE K
(2) 300 AMP TRIPLE CABLE-SETS 25 FT. COLOR-CODED
(4) 3-WAY SPLITTERS, COLOR-CODED
(2) 25 FT. TRIPLE CABLESETS
(4) 3-WAY SPLITTERS COLOR CODED
(1) 7 FT. INSTUMENT POWER CORD, 120 VAC
(1) POWDERCOATED CABINET "SAFETY YELLOW"
(1) INSTRUCTION MANUAL
* Note: This Machine is Capable of Operating (6) 80V Ceramic Pad Heaters Simultaneously when Stress Relieving. Requires at least a 300A Welding Machine as a Power Source.
*Options: Single-Stage Alarm, Dual-Stage Alarms, Ethernet, Ceramic Pad, Heater Package

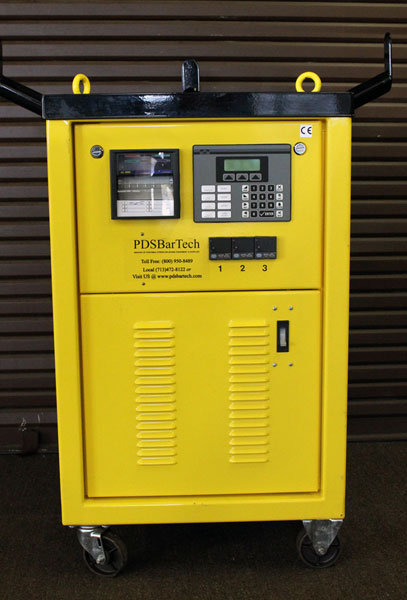

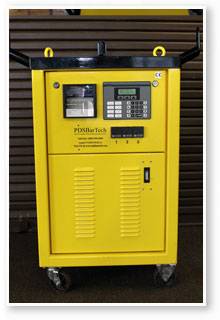

PCE-330
3-ZONE FULLY AUTOMATIC MACHINE W/ RECORDER:
(1) 35kVA NATURAL AIR TRANSFORMER
(1) HMI-USER FRIENDLY PROGRAMMER, INSTALLED WITH ASME
HEAT TREATING & PWHT CYCLES
(3) COMMUNICATION PROGRAMMABLE CONTROLLERS
(1) 100MM SIMULTANEOUS DISPLAY 6 PT. RECORDER,
CALIBRATED & CERTIFIED
(3) HEAVY DUTY 200AMP CONTACTORS
(4) HEAVY DUTY CASTORS, 2 FIXED, 2 SWIVEL
(1) 6 PT. THERMOCOUPLE JACK PANEL, TYPE K
(3) 300 AMP TRIPLE CABLE-SETS 25 FT. COLOR-CODED
(6) 3-WAY SPLITTERS, COLOR-CODED
(1) 25 FT. PRIMARY POWER CABLE
(1) POWDERCOATED CABINET "SAFETY YELLOW"
(1) POWDERCOATED CABLE RACK �GLOSS BLACK�
(1) INSTRUCTION MANUAL
* Note: This Machine is Capable of Operating (9) 80V Ceramic Pad Heaters Simultaneously when Stress Relieving.
*Options: Single-Stage Alarm, Dual-Stage Alarms, Ethernet, Ceramic Pad Heater Package
PCE-630
6-ZONE FULLY AUTOMATIC MACHINE W/ RECORDER:
(1) 75kVA NATURAL AIR TRANSFORMER
(1) HMI-USER FRIENDLY PROGRAMMER, INSTALLED WITH ASME
HEAT TREATING PWHT CYCLES
(6) COMMUNICATION PROGRAMMABLE CONTROLLERS
(1) 180MM SIMULTANEOUS DISPLAY 12 PT. RECORDER,
CALIBRATED & CERTIFIED
(6) HEAVY DUTY 200AMP CONTACTORS
(4) HEAVY DUTY CASTORS, 2 FIXED, 2 SWIVEL
(1) 12 PT. THERMOCOUPLE JACK PANEL, TYPE K
(6) 300 AMP TRIPLE CABLE-SETS 50 FT. COLOR-CODED
(12) 3-WAY SPLITTERS, COLOR-CODED
(1) 25 FT. PRIMARY POWER CABLE
(1) POWDERCOATED CABINET "SAFETY YELLOW"
(1) POWDERCOATED CABLE RACK �GLOSS BLACK�
(1) INSTRUCTION MANUAL
* Note: This Machine is Capable of Operating (18) 80V Ceramic Pad Heaters Simultaneously when Stress Relieving.
*Options: Single-Stage Alarm, Dual-Stage Alarms, Ethernet, Ceramic Pad Heater Package

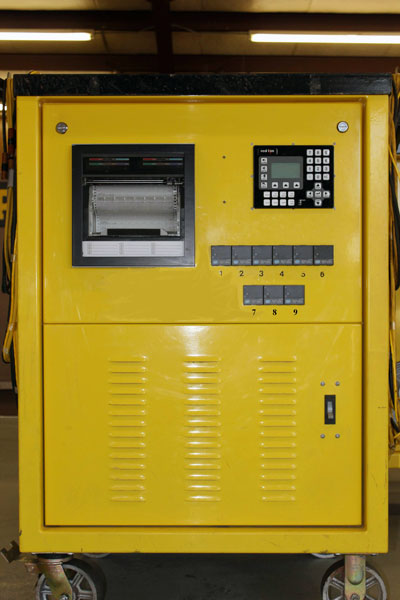

PCE-930
9-ZONE FULLY AUTOMATIC MACHINE W/ RECORDER:
(1) 100kVA NATURAL AIR TRANSFORMER
(1) HMI-USER FRIENDLY PROGRAMMER, INSTALLED WITH ASME
HEAT TREATING PWHT CYCLES
(9) COMMUNICATION PROGRAMMABLE CONTROLLERS
(1) 180MM SIMULTANEOUS DISPLAY 24 PT. RECORDER,
CALIBRATED &CERTIFIED
(9) HEAVY DUTY 200AMP CONTACTORS
(4) HEAVY DUTY CASTORS, 2 FIXED, 2 SWIVEL
(1) 24 PT. THERMOCOUPLE JACK PANEL, TYPE K
(9) 300 AMP TRIPLE CABLESETS 50 FT. COLOR-CODED
(18) 3-WAY SPLITTERS, COLOR-CODED
(1) 25 FT. PRIMARY POWER CABLE
(1) POWDERCOATED CABINET "SAFETY YELLOW"
(1) POWDERCOATED CABLE RACK �GLOSS BLACK�
(1) INSTRUCTION MANUAL
* Note: This Machine is Capable of Operating (27) 80V Ceramic Pad Heaters Simultaneously when Stress Relieving.
*Options: Single-Stage Alarm, Dual-Stage Alarms, Ethernet, Ceramic Pad Heater Package
PCE-1230
12 - ZONE FULLY AUTOMATIC MACHINE W/ RECORDER:
(1) 135kVA NATURAL AIR TRANSFORMER
(1) HMI-USER FRIENDLY PROGRAMMER, INSTALLED WITH ASME
HEAT TREATING PWHT CYCLES
(12) COMMUNICATION PROGRAMMABLE CONTROLLERS
(1) 180MM SIMULTANEOUS DISPLAY 24 PT. RECORDER,
CALIBRATED &CERTIFIED
(12) HEAVY DUTY 200AMP CONTACTORS
(4) HEAVY DUTY CASTORS, 2 FIXED, 2 SWIVEL
(1) 24 PT. THERMOCOUPLE JACK PANEL, TYPE K
(12) 300 AMP TRIPLE CABLESETS 50 FT. COLOR-CODED
(24) 3-WAY SPLITTERS, COLOR-CODED
(1) 25 FT. PRIMARY POWER CABLE
(1) POWDERCOATED CABINET "SAFETY YELLOW"
(1) POWDERCOATED CABLE RACK �GLOSS BLACK�
(1) INSTRUCTION MANUAL
* Note: This Machine is Capable of Operating (36) 80V Ceramic Pad Heaters Simultaneously when Stress Relieving.
*Options: Single-Stage Alarm, Dual-Stage Alarms, Ethernet, Ceramic Pad Heater Package
PCE-1830
18 - ZONE FULLY AUTOMATIC MACHINE W/ RECORDER:
(1) 200kVA NATURAL AIR TRANSFORMER
(1) HMI-USER FRIENDLY PROGRAMMER, INSTALLED WITH ASME
HEAT TREATING PWHT CYCLES
(18) COMMUNICATION PROGRAMMABLE CONTROLLERS
(1) 180MM SIMULTANEOUS DISPLAY 24 PT. RECORDER,
CALIBRATED &CERTIFIED
(18) HEAVY DUTY 200AMP CONTACTORS
(4) HEAVY DUTY CASTORS, 2 FIXED, 2 SWIVEL
(1) 24 PT. THERMOCOUPLE JACK PANEL, TYPE K
(18) 300 AMP TRIPLE CABLESETS 50 FT. COLOR-CODED
(36) 3-WAY SPLITTERS, COLOR-CODED
(1) 25 FT. PRIMARY POWER CABLE
(1) POWDERCOATED CABINET "SAFETY YELLOW"
(1) POWDERCOATED CABLE RACK �GLOSS BLACK�
(1) INSTRUCTION MANUAL
* Note: This Machine is Capable of Operating (54) 80V Ceramic Pad Heaters Simultaneously when Stress Relieving.
*Options: Single-Stage Alarm, Dual-Stage Alarms, Ethernet, Ceramic Pad Heater Package
PCE-2430
24 - ZONE FULLY AUTOMATIC MACHINE W/ RECORDER
(2) 135kVA NATURAL AIR TRANSFORMER
(1) HMI-USER FRIENDLY PROGRAMMER, INSTALLED WITH ASME
HEAT TREATING PWHT CYCLES
(24) COMMUNICATION PROGRAMMABLE CONTROLLERS
(2) 180MM SIMULTANEOUS DISPLAY 24 PT. RECORDER,
CALIBRATED & CERTIFIED
(24) HEAVY DUTY 200AMP CONTACTORS
(2) 24 PT. THERMOCOUPLE JACK PANEL, TYPE K
(24) 300 AMP TRIPLE CABLESETS 50 FT. COLOR-CODED
(48) 3-WAY SPLITTERS, COLOR-CODED
(1) 25 FT. PRIMARY POWER CABLE
(1) POWDERCOATED HEAVY DUTY SKID W/ CABLE RACK
"SAFETY YELLOW"
(1) INSTRUCTION MANUAL
* Note: This Machine is Capable of Operating (72) 80V Ceramic Pad Heaters Simultaneously when Stress Relieving.
*Options: Single-Stage Alarm, Dual-Stage Alarms, Ethernet, Ceramic Pad Heater Package
